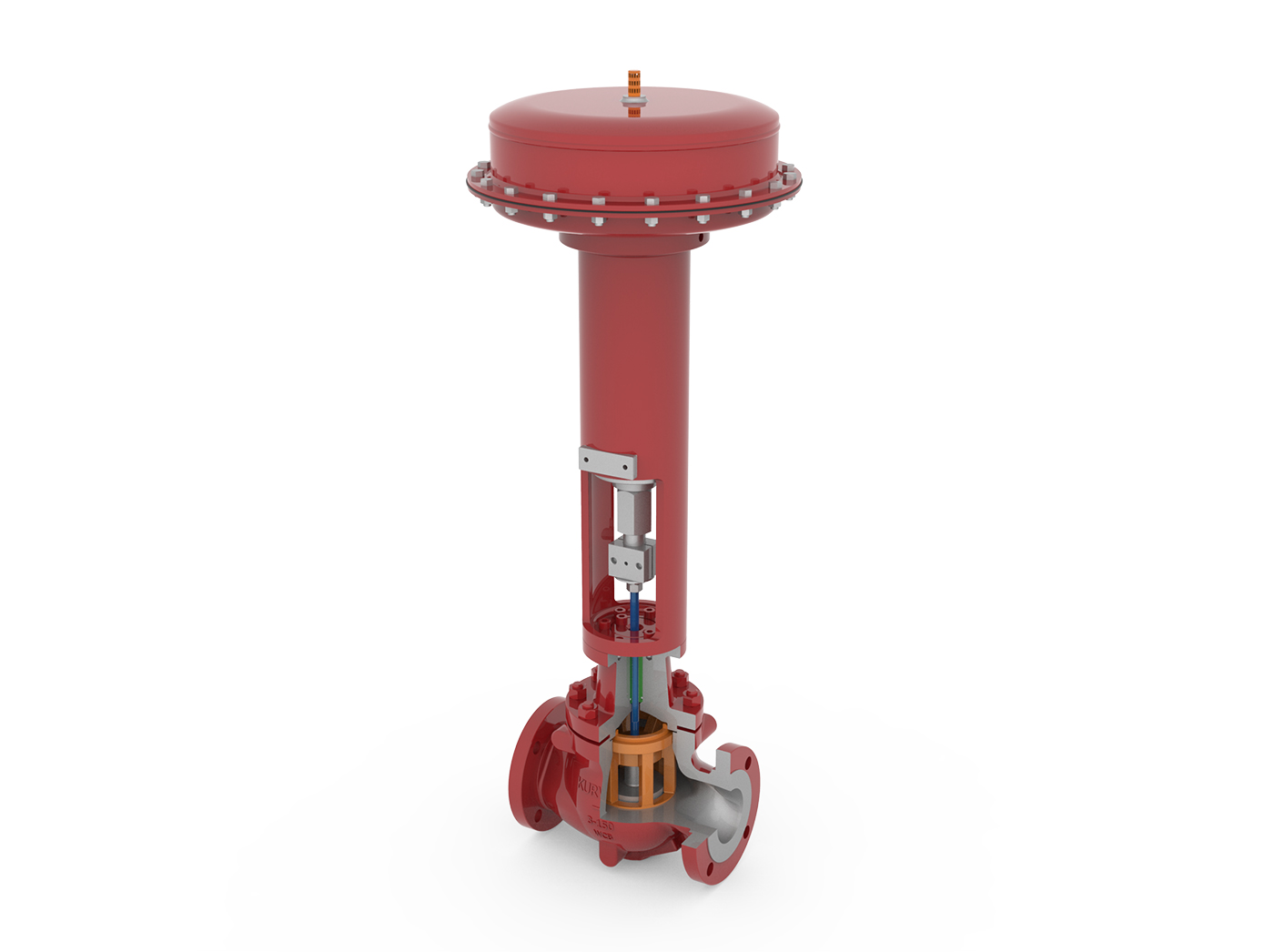

Globe Control Valve

Globe control valves are used to control the flow rate and pressure of the flow. Trim is designed according to temperature and fluid to be controlled.

Size Range
1" - 24"
Pressure Ratings
ANSI 150 - 1500
End Connections
RF - RTJ - BW

Specifications

Valve Size 1″ — 24″
Valve Type Bolted
Pressure Class ANSI 150 / 300 / 600 / 900 / 1500
End Connection RF / RTJ / BW
Flow Characteristics Equal Percentage / Linear / Quick Opening
Operator Pneumatic Actuator / Electric Actuator
Material Carbon Steel / Stainless Steel / Duplex / Alloy Steel
Operating Temperature Standard / High
Leakage Class API 598 / ANSI FC70-2 / ISO 5208
Design Standard API 6D / ASME B16.34 / ISO 14313
Face to Face Standard ASME B16.10
End Connection Standard ASME B16.5 / ASME B16.25/ DIN EN 1092-1
Test Standard API 6D / API 598
Fire Safe Standard API 607 / ISO 10497 / API 6FA
Certification EN 10204 3.1 — 3.2 / 2014-68-EU PED

Features

Изображение горячей кнопки
+ VIEW
Модуль изображения
1 The actuator selection is automatic.
2 The instrumentation on the valve is pre-assembled.
3 Easy maintenance.
4 Renewable seats.
5 Available with metal and soft seats.
6 Blow out proof stem.
7 Strengthened stem packing is default.
