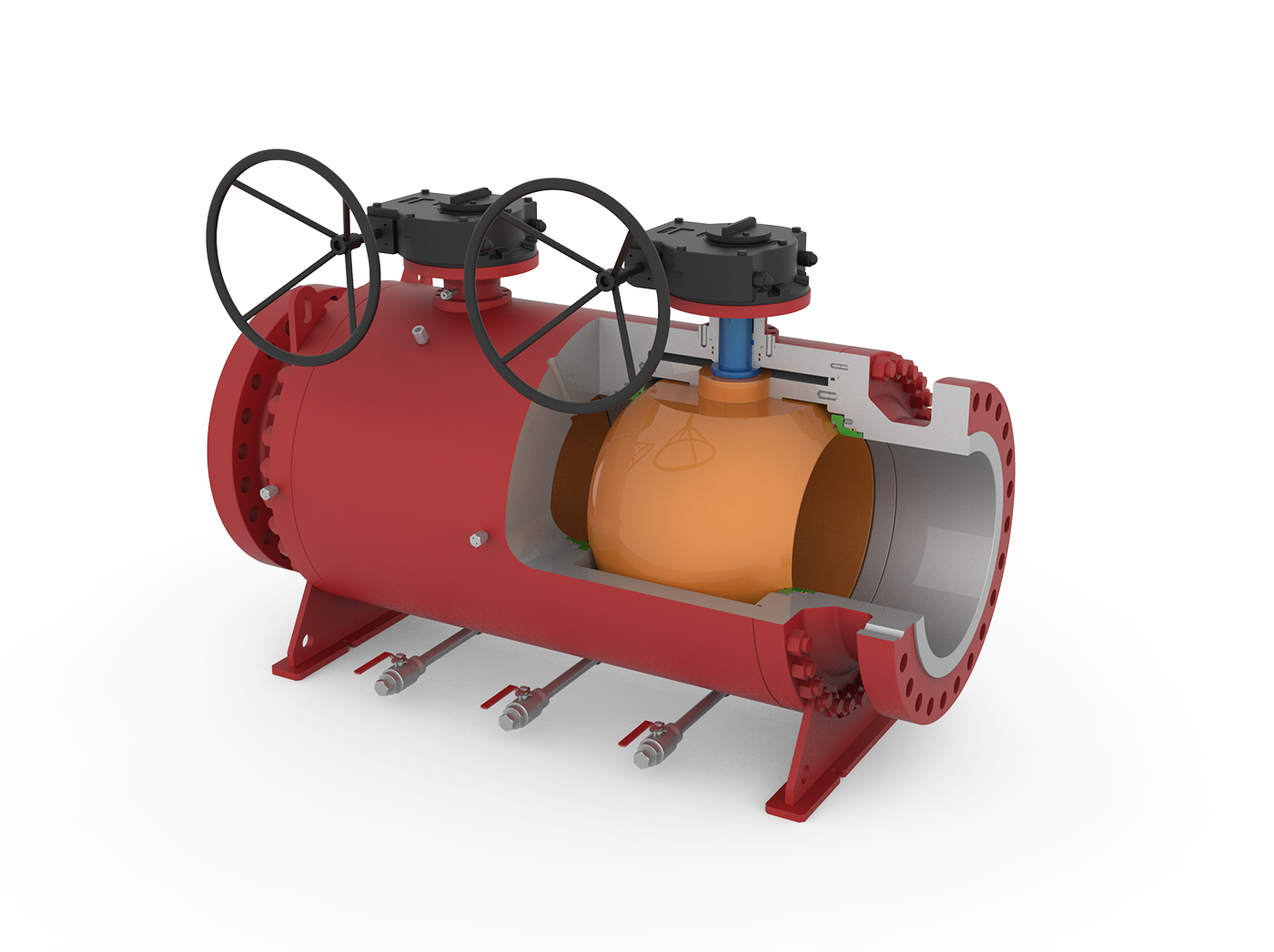

Twin Ball Valve

Double ball valves are used in oil & gas industry for their high sealing performance at low pressures and easy on-off operation at high pressure applications. Since the ball is mounted with top and bottom trunnions, torque values are low.

Double ball valves have double block and bleed features which allows the body cavity to drain from both upstream and downstream ends.

Double ball valves are used in critical service conditions. They are preferred because of their high safety.

Size Range
2" - 36"
Pressure Ratings
ANSI 150 - 1500
Bore
Full - Reduced Bore
End Connections
RF - RTJ

Specifications

Valve Size 2″ — 36″
Valve Type Trunnion
Body Type Bolted
Pressure Class ANSI 150 / 300 / 600 / 900 / 1500
End Connection RF / RTJ
Bore Full Bore / Reduced Bore
Operator Lever / Gear / Actuator
Material Carbon Steel / Stainless Steel / Duplex / Alloy Steel
Operating Temperature Low / Standard / High
Leakage Class API 598 / ANSI FC70-2 / ISO 5208
Design Standard ASME B16.34 / API 6D / ISO 14313 / ISO 17292
Face to Face Standard ASME B16.10
End Connection Standard ASME B16.5 / ASME B16.25/ DIN EN 1092-1
Test Standard API 6D / API 598 / ISO 14313
Fire Safe Standard API 607 / ISO 10497 / API 6FA
Certification EN 10204 3.1 — 3.2 / ISO 15848 Fugitive Emission / 2014-68-EU PED / SIL Capable / IP 67 (Gearbox)
Isolation Type DBB / DIB-1 / DIB-2

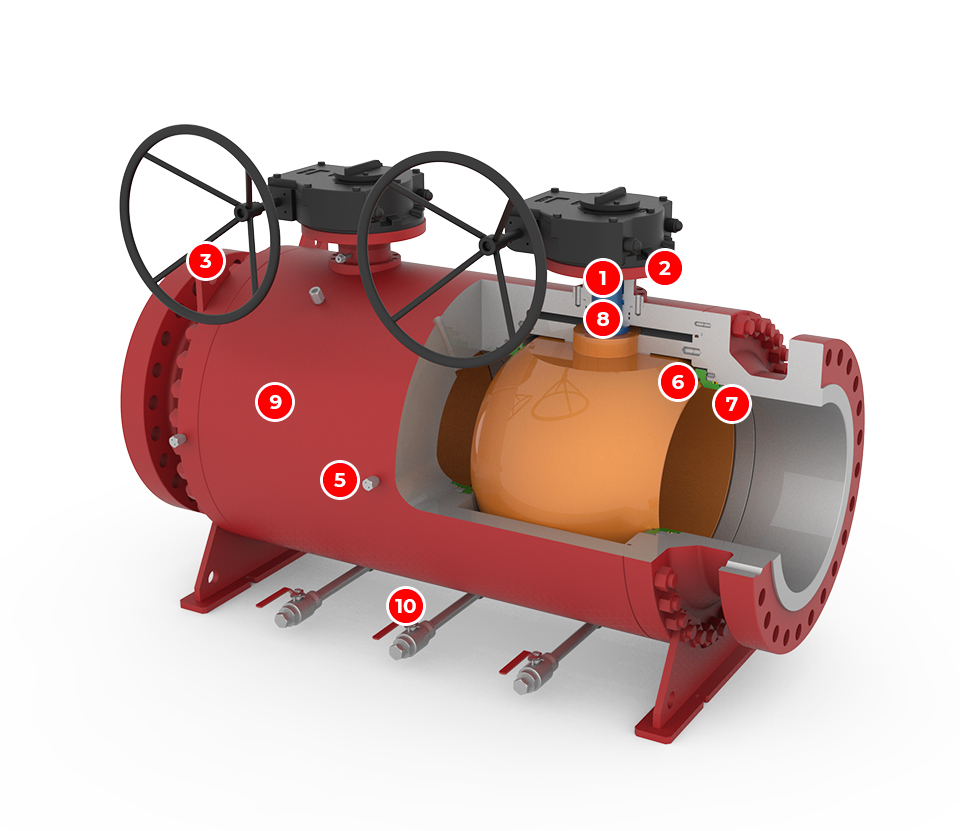

Features

Изображение горячей кнопки
+ VIEW
Модуль изображения
1 Due to low torque values, smaller actuator can be selected.
2 The actuator selection is automatic.
3 Fixed lifting lugs on the valve.
4 Easy maintenance.
5 Emergency sealing fittings are default.
6 Renewable seats.
7 Available with metal and soft seats.
8 Blow-out-proof stem.
9 Locking device is optional.
10 Instrumentation valves are available to drain body cavity.
