Ball control valves take their basic properties from ball valves. They are quarter-turn valves. They are used to control the flow rate of the flow. Trim is designed according to temperature and fluid to be controlled.

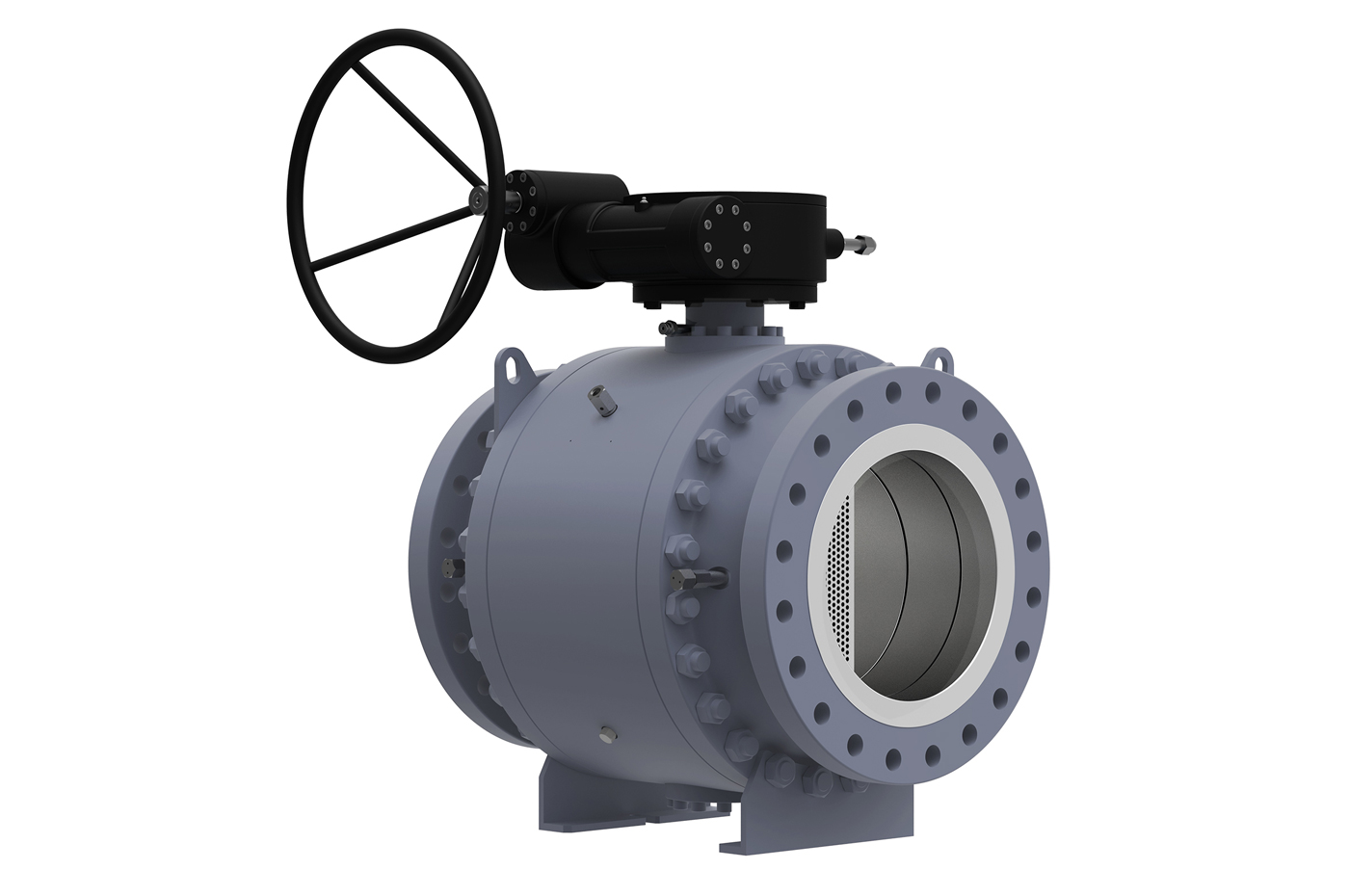

Ball Control Valve
Size Range
1" - 42"
Pressure Ratings
ANSI 150 - 1500
End Connections
RF - RTJ - BW
Specifications
| Valve Size | 1″ – 42″ |
| Valve Type | Bolted |
| Pressure Class | ANSI 150 / 300 / 600 / 900 / 1500 |
| End Connection | RF / RTJ / BW |
| Flow Characteristics | Equal Percentage / Linear / Quick Opening |
| Operator | Pneumatic Actuator / Electric Actuator |
| Material | Carbon Steel / Stainless Steel / Duplex / Alloy Steel |
| Operating Temperature | Standard / High |
| Leakage Class | API 598 / ANSI FC70-2 / ISO 5208 |
| Design Standard | API 6D / ASME B16.34 / ISO 14313 |
| Face to Face Standard | ASME B16.10 |
| End Connection Standard | ASME B16.5 / ASME B16.25/ DIN EN 1092-1 |
| Test Standard | API 6D / API 598 |
| Fire Safe Standard | API 607 / ISO 10497 / API 6FA |
| Certification | EN 10204 3.1 – 3.2 / 2014-68-EU PED |
Features
| 1 | Due to low torque values, smaller actuator can be selected. |
| 2 | The actuator selection is automatic. |
| 3 | Fixed lifting lugs on the valve. |
| 4 | Available with metal and soft seats. |
| 5 | Easy maintenance. |
| 6 | Emergency sealing fittings can be added if needed. |
| 7 | Blow-out-proof stem. |
| 8 | Strengthened stem packing is optional. |
| 9 | Locking device is optional. |
